Article No. 96250
DRAINFIX Multifunction shafts
Inlet and distribution shaft SUPER, 3-piece with closed ductile iron cover, black, class E 600
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

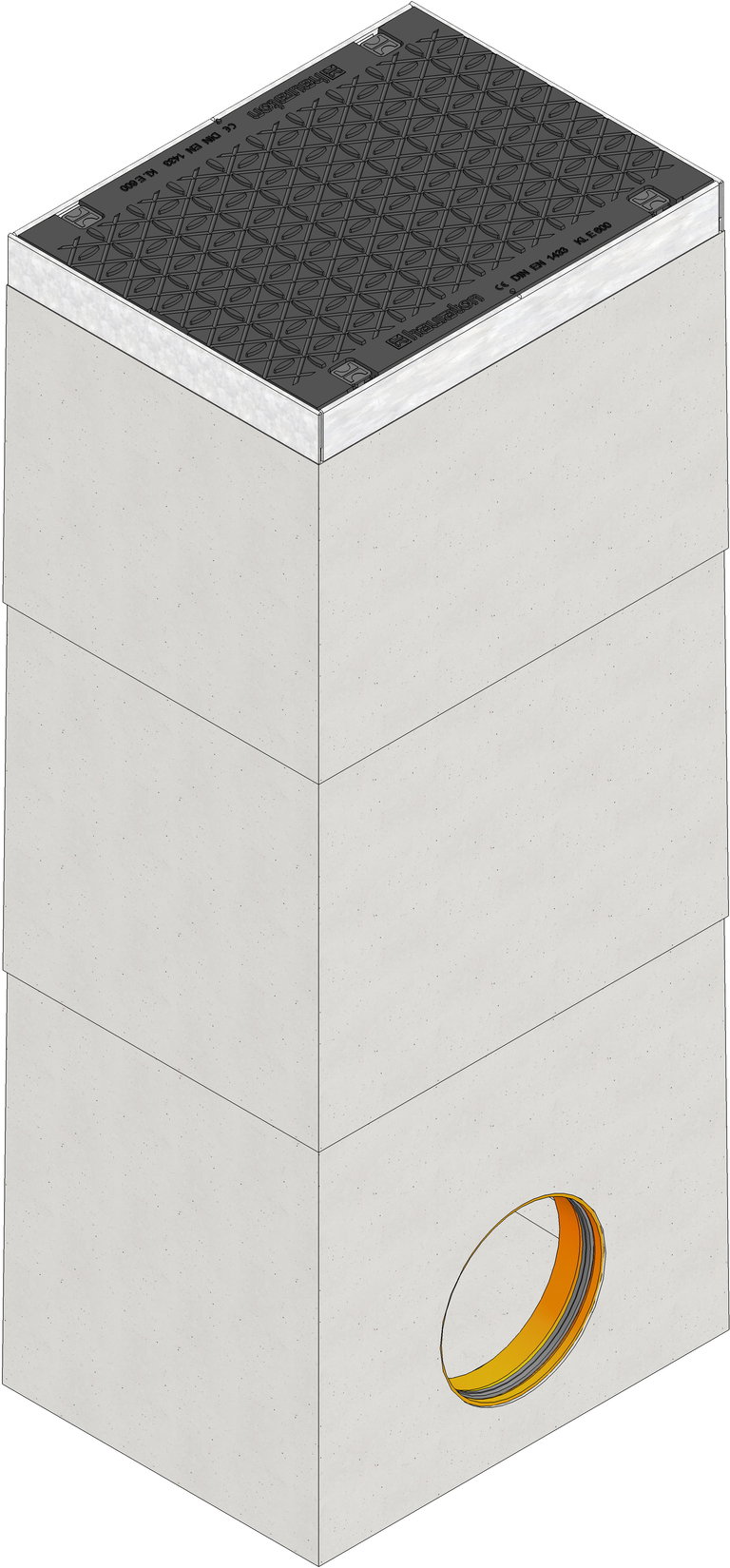

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
96250
Length
510 mm
Width
390 mm
Height
1250 mm
Weight
289.00 kg
Material
fibre-reinforced concrete
Nominal size
-
Sales text
Multifunction gully SUPER, 3-part, made of concrete, with edge frames made of galvanised steel, with filter unit, with ductile iron grating closed, black, cl. E 600, DRAINFIX BLOC, 0.51 m
Product description
DRAINFIX BLOC - inlet and distribution manhole SUPER -made from fibre reinforced concrete with galvanised steel angle housing, three-parts consisting of upper part, middle part with filter element and lower part, with closed ductile iron grating made of spheroidal ductile iron GJS 500-7, loading capacity E 600 with boltless quick-locking system SIDE-LOCK, fourfold locking, one-side connection possibility with integrated PVC-U socket DN/OD 200, L/W/H 510x390x1250 mm, item no. 96250
Packaging unit
-
Volumen
0.0 l
Tender Texts
Installation guide
Installation guide
Installation example
multi-layer paving for traffic areas
