Article No. 96550

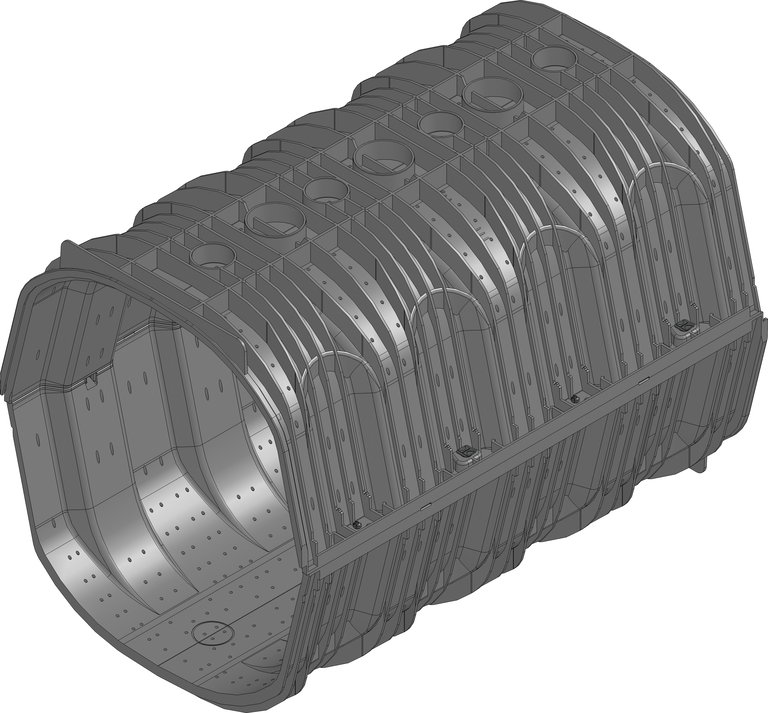

DRAINFIX TWIN, Seepage element made of recycled composite
TWIN 1/1, black (2 parts, 506 l), both sides perforated
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
96550
Length
1145 mm
Width
760 mm
Height
870 mm
Weight
23.00 kg
Material
recycled, modified Polypropylene
Nominal size
650
Sales text
DRAINFIX TWIN 1/1 Infiltration & soakaway unit, black (2 parts, 506 L), top and bottom part perforated
Product description
DRAINFIX TWIN 1/1, black, perforated upper and lower part, made of PP, seepage element, suitable for infiltration and retention of surface water, including 8 x DRAINFIX TWIN locking and 2 DRAINFIX TWIN connector brackets, trafficable for heavy goods vehicles up to SLW 30 with appropriate installation, volume 506 l, L/W/H 1145x760x870 mm, weight 23.0 kg, Item No. 96550
Packaging unit
16
Volumen
0.0 l
national declaration of performance
Nation DoP
Tender Texts
Installation guide
Installation guide
Installation example
green space class Walkable, DRAINFIX TWIN 0/1, 1/1
green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 1/0 (3x)
green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 1/0 in two levels
green space class Walkable, DRAINFIX TWIN 1 (3x)
Pavement class SLW 30, DRAINFIX TWIN 0/1, 1/1, 1/0 (3x)
Pavement class SLW 30, DRAINFIX TWIN 0/1, 1/1, 1/0 in two levels
Asphalt class SLW 30, DRAINFIX TWIN 1 (3x)
