Article No. 24744
FASERFIX BIG BL 300 with ductile iron angle housings, up to load class F 900
Type 021, 4,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

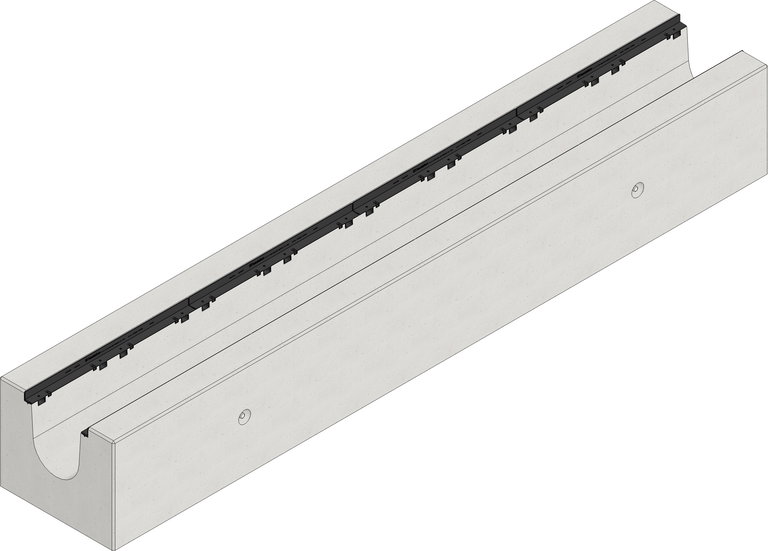

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
24744
Length
4000 mm
Width
700 mm
Height
575 mm
Weight
3000.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, High performance concrete
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
812 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
High performance concrete
Material of angle housing
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX BIG BL 300 Channel type 021 with KTL coated ductile iron angle housing, 4 m
Product description
FASERFIX BIG BL 300 type 021 -made of reinforced concrete C50/60, loading capacity from A 15 to F 900 according to EN 1433, CE compliant, with KTL-coated ductile iron angle housing, with stainless steel bolt top eightfold locking, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, L/W/H 4000x700x575 mm, item no. 24744
Packaging unit
-
Tender Texts
Installation example
Asphalt class D 400
Concrete class D 400
Pavement class D 400
Asphalt class E 600
Concrete class E 600
Pavement class E 600
Asphalt class F 900
Concrete class F 900
Installation guide
Installation guide
