Article No. 23768
FASERFIX BIG SLG 200, class E 600
GUGI-ductile iron mesh grating, MW 15/25 mm, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

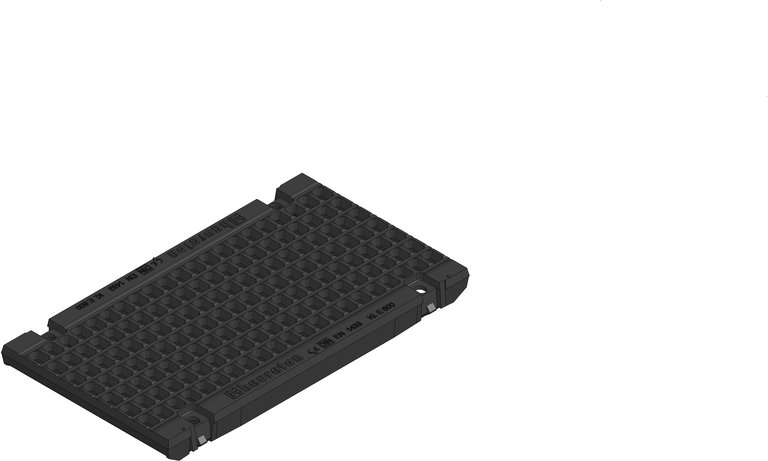

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
23768
Length
500 mm
Width
279 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
12.75 kg
Material
Ductile iron GJS 500-7
Intake cross-section
832.0 cm²/m
Nominal size
200
Inlet opening
15 x 25 mm
Regulations
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Regulations
GUGI-ductile iron mesh grating MS 15/25 mm, KTL-coated, cl. E 600, FASERFIX SUPER 200, 0.5 m
Regulations
FASERFIX SUPER 200 GUGI-Ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, mesh width 15x25 mm, KTL-coated, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 23768
Regulations
84
Declaration of Performance
