Article No. 3482

FASERFIX BIG SLG 200, up to class F 900

Type 020 with one-sided joint plate, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

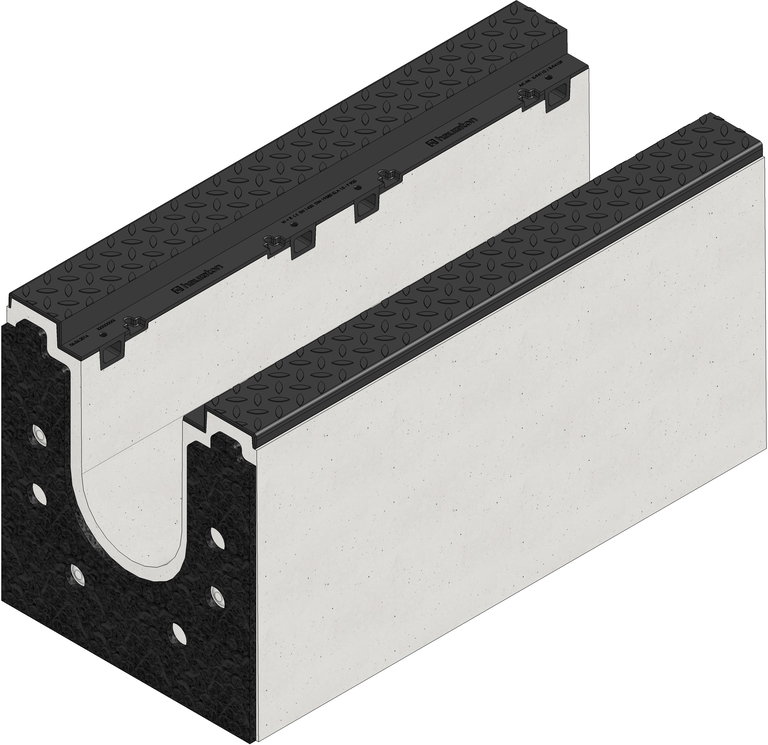

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
3482
Length
1000 mm
Width
488 mm
Height
520 mm
Weight
459.00 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
200
Internal channel cross-section
552 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX BIG SLG 200 Channel body type 020 with edge frames made of ductile iron, with one-sided expansion joint insert, 1 m
Product description
FASERFIX BIG SLG 200 Type 020 - Concrete Casing channel lower part, made of fibre-reinforced concrete, with one-sided expansion joint insert, loading capacity A 15 - F 900 according to EN 1433, CE-compliant, with ductile iron angle housing made of spheroidal ductile iron GJS 500-7, height of angle housing 40 mm, eightfold locking, without crossing bars in the channel line, with safety joint, with two-sided ductile iron in-situ concrete stretcher protector with corrugated surface as anti-slip surface made of spheroidal ductile iron 5 mm material thickness, L/W/H 1000x488x520 mm, item no. 3482
Packaging unit
3

Declaration of Performance

Tender Texts

Installation example

Asphalt class D 400,

Concrete class D 400,

Pavement class D 400 - E 600,

Asphalt class E 600 - F 900,

Concrete class E 600 - F 900,

Asphalt class D 400, Type I

Concrete class D 400, Type I

Pavement class D 400, Type I

Asphalt class D 400, as double strand

Concrete class D 400, as double strand

Pavement class D 400 - E 600, as double strand

Asphalt class E 600 - F 900, as double strand

Concrete class E 600 - F 900, as double strand
