Article No. 8161
FASERFIX KS 100, class A 15
Slotted grating SW 80/10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

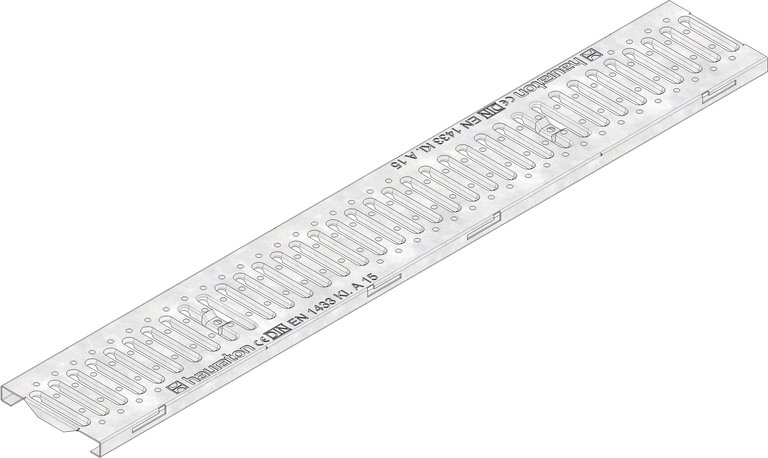

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
8161
Length
1000 mm
Width
149 mm
Height
21 mm
Einlegetiefe
20 mm
Weight
2.75 kg
Material
strip galvanized steel
Intake cross-section
278.0 cm²/m
Nominal size
100
Inlet opening
80 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
Slotted grating SW 80x10, galvanised, cl. A 15, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Slotted grating slot width 80x10, galvanised, load class A 15 according to EN 1433, CE compliant, installation length 1000 mm, item no. 8161
Packaging unit
300
Declaration of Performance
