Article No. 8163
FASERFIX KS 100, class A 15
Slotted grating SW 80/10 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

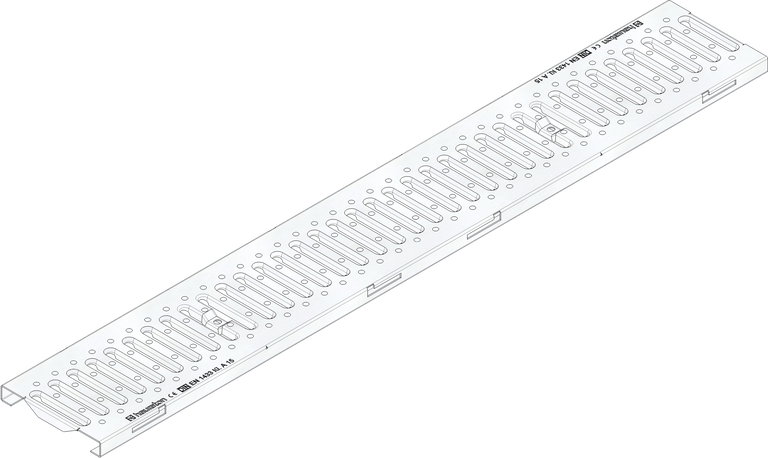

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
8163
Length
1000 mm
Width
149 mm
Height
21 mm
Einlegetiefe
20 mm
Weight
2.30 kg
Material
Stainless steel 1.4301
Intake cross-section
278.0 cm²/m
Nominal size
100
Inlet opening
80 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Slotted grating, stainless steel, Cl. A 15, KS 100, 1m
Product description
KS 100 - Slotted grating, stainless steel, loading capacity A 15 acc. DIN 19580/EN 1433, CE-conform, length 1000mm, Item No. 8163
Packaging unit
300
Declaration of Performance
