Article No. 8078
FASERFIX KS 100, class B 125
Mesh grating MW 30/30 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

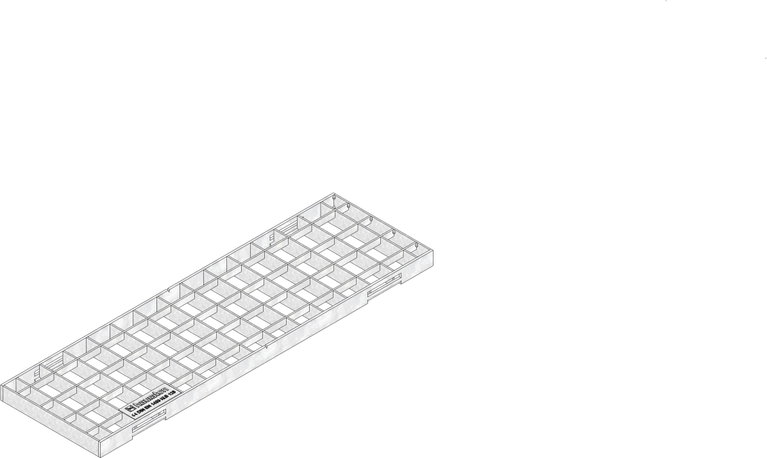

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
8078
Length
500 mm
Width
149 mm
Height
21 mm
Einlegetiefe
20 mm
Weight
1.50 kg
Material
hot-dip galvanised steel
Intake cross-section
869.0 cm²/m
Nominal size
100
Inlet opening
30 mm
Fixing type
SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MW 30/30, galvanised, cl. B 125, KS 100, L: 0,5 m
Product description
KS 100 - Mesh grating MW 30/30, galvanised, loading capacity from A 15 - B 125 acc. DIN 19580/EN 1433, CE-conform, length: 500 mm, Item No. 8078
Packaging unit
400
Declaration of Performance
