Article No. 8077
FASERFIX KS 100, class B 125
Mesh grating MW 30/30 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

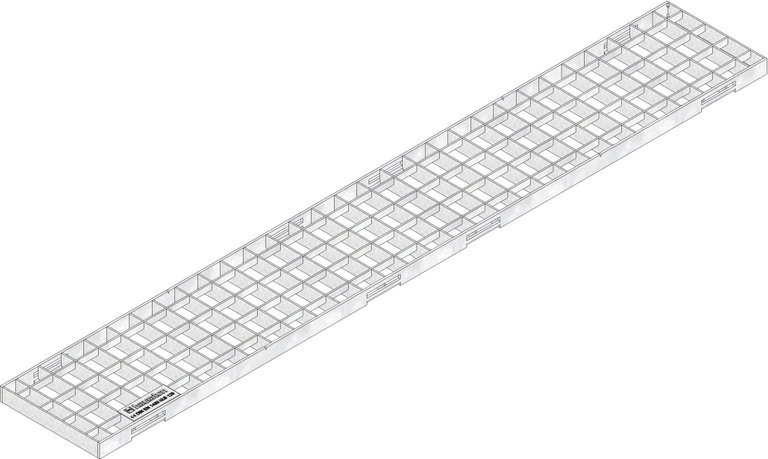

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
8077
Length
1000 mm
Width
149 mm
Height
21 mm
Einlegetiefe
20 mm
Weight
3.00 kg
Material
hot-dip galvanised steel
Intake cross-section
878.0 cm²/m
Nominal size
100
Inlet opening
30 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/30 mm, galvanised, cl. B 125, FASERFIX KS 100, 1 m
Product description
KS 100 - Mesh grating MW 30/30, galvanised, loading capacity from A 15 - B 125 acc. DIN 19580/EN 1433, CE-conform, length: 1000 mm, Item No. 8077
Packaging unit
200
Declaration of Performance
