Article No. 28074
FASERFIX KS 100, class C 250
Mesh grating MW 30/30 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

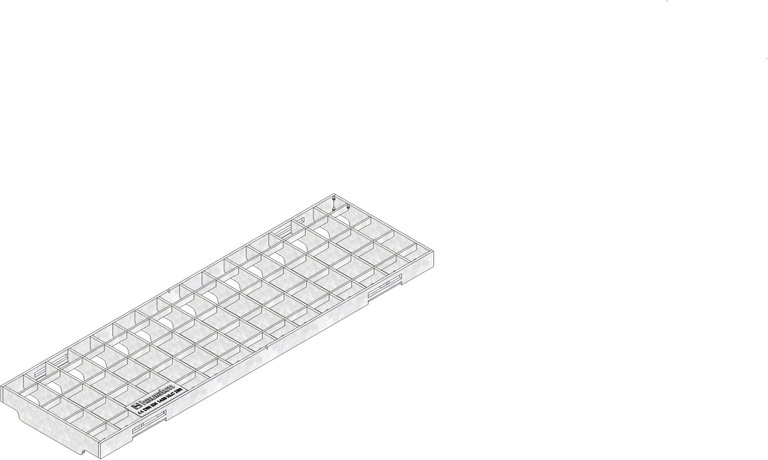

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
28074
Length
500 mm
Width
149 mm
Height
31 mm
Einlegetiefe
20 mm
Weight
2.20 kg
Material
hot-dip galvanised steel
Intake cross-section
819.0 cm²/m
Nominal size
100
Inlet opening
30 mm
Regulations
SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Regulations
Mesh grating MS 30/30 mm, galvanised, cl. C 250, FASERFIX KS 100, 0.5 m
Regulations
KS 100 - Mesh grating, MW 30/30, galvanised, loading capacity A 15 - C 250 acc. DIN 19580/EN 1433, CE-conform, length 500 mm, Art.-no. 28074
Regulations
400
Declaration of Performance
