Article No. 28171
FASERFIX KS 100, class C 250
Perforated grating diam. 6 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

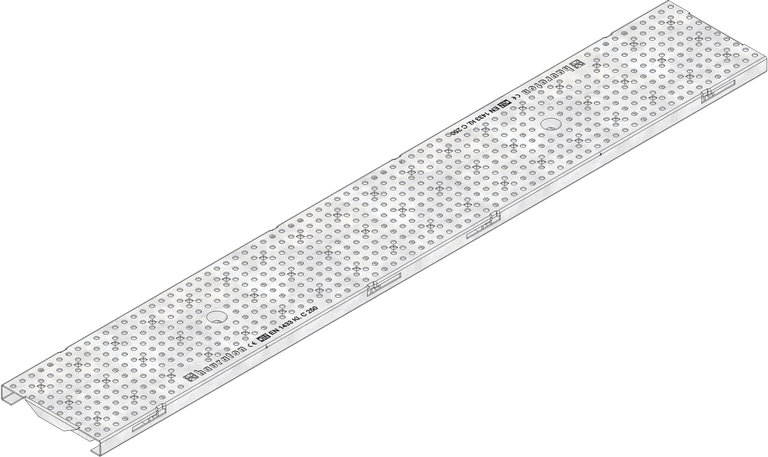

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
28171
Length
1000 mm
Width
149 mm
Height
27 mm
Einlegetiefe
20 mm
Weight
5.30 kg
Material
strip galvanized steel
Intake cross-section
191.0 cm²/m
Nominal size
100
Inlet opening
6 x 0 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
Perforated grating, galvanised, cl. C 250, KS 100, 1 m
Product description
KS 100 - Perforated grating, galvanised, with boltless quick-locking system SIDE-LOCK, loading capacity from A 15 - C 250 acc. DIN 19580/EN 1433, CE-conform, length: 1000 mm, Art.-no. 28171
Packaging unit
192
Declaration of Performance
