Article No. 28168
FASERFIX KS 100, class C 250
Reinforced slotted grating SW 80/10 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

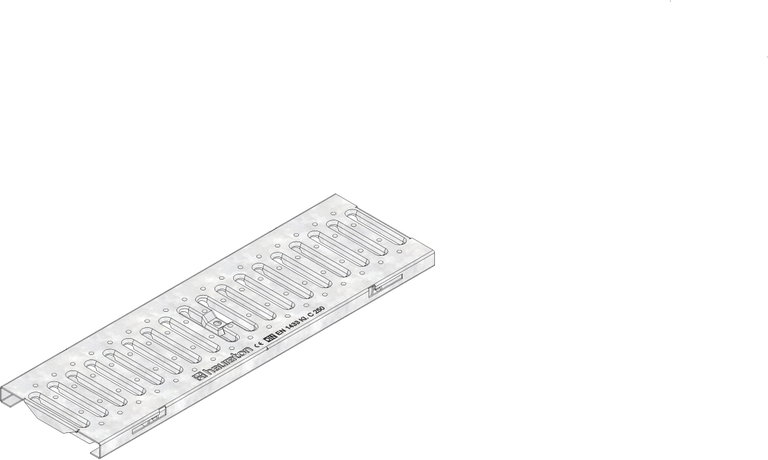

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
28168
Length
500 mm
Width
149 mm
Height
27 mm
Einlegetiefe
20 mm
Weight
2.60 kg
Material
strip galvanized steel
Intake cross-section
281.0 cm²/m
Nominal size
100
Inlet opening
80 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
Reinforced slott grating, galvanised, cl. C 250, KS 100, 0,5 m
Product description
KS 100 - Reinforced slotted grating, galvanised, loading capacity from A 15 - C 250 acc. DIN 19580/EN 1433, CE-conform, length: 500 mm, Art.-no. 28168
Packaging unit
384
Declaration of Performance
