Article No. 28169
FASERFIX KS 100, class C 250
Reinforced slotted grating SW 80/10 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

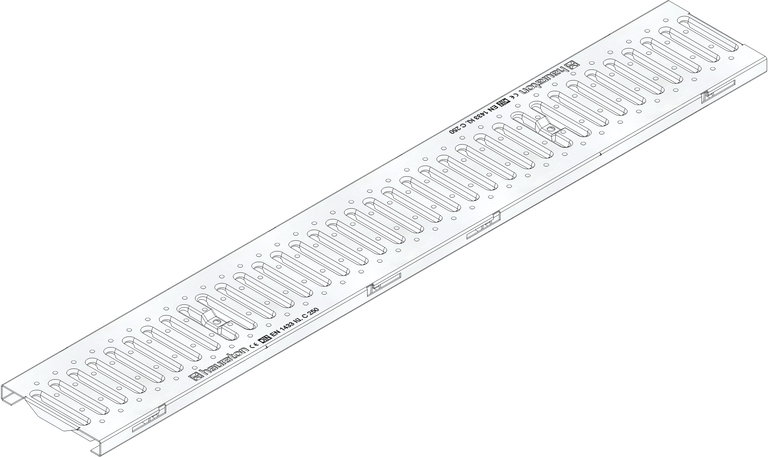

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
28169
Length
1000 mm
Width
149 mm
Height
27 mm
Einlegetiefe
20 mm
Weight
5.10 kg
Material
Stainless steel 1.4301
Intake cross-section
281.0 cm²/m
Nominal size
100
Inlet opening
80 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Reinforced slotted grating, stainless steel, cl. C 250, FASERFIX KS 100, 1 m
Product description
KS 100 - Reinforced slotted grating, stainless steel, loading capacity from A 15 - C 250 acc. DIN 19580/EN 1433, CE-conform, length: 1000 mm, Art.-no. 28169
Packaging unit
192
Declaration of Performance
