Article No. 8863
FASERFIX KS 100, class D 400
Ductile iron grating SW 100/14 mm, black, locked, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

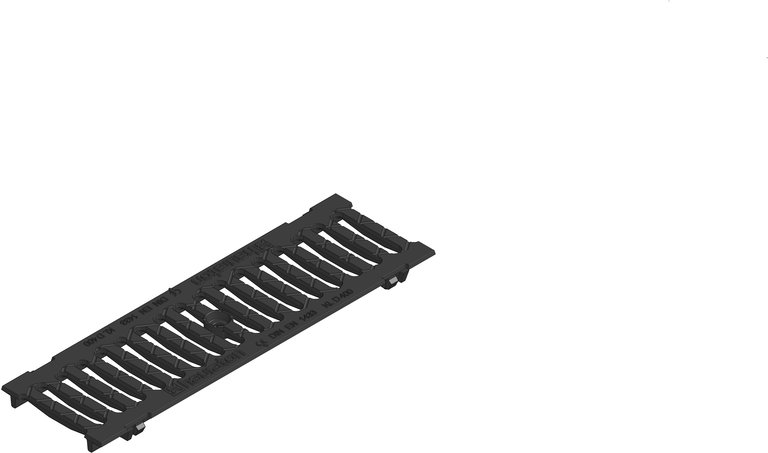

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
8863
Length
500 mm
Width
149 mm
Height
25 mm
Einlegetiefe
20 mm
Weight
3.70 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
462.0 cm²/m
Nominal size
100
Inlet opening
100 x 14 mm
Regulations
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Regulations
Ductile iron grating SW 100/14 mm, KTL-coated, cl. D 400, FASERFIX KS 100, 0.5 m
Regulations
FASERFIX KS 100 - ductil iron grating made of spheroidal ductile iron GJS 500-7, SW 100/14 mm, KTL-coated, with horizontal thrust resistance, loading capacity from A 15 - D 400 according to EN 1433, CE-conform, fourfold locking, installation length 500 mm, item no. 8863
Regulations
264
Declaration of Performance
