Article No. 10540
FASERFIX KS 100, class D 400
Mesh grating MS 30/10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

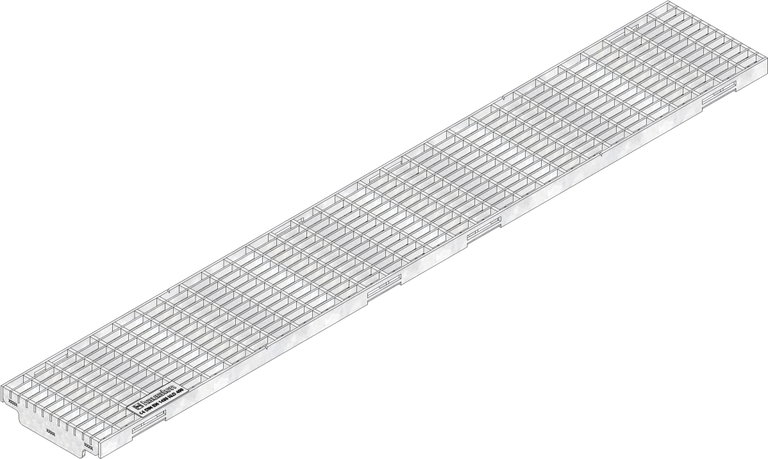

Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
10540
Length
1000 mm
Width
149 mm
Height
36 mm
Einlegetiefe
20 mm
Weight
6.62 kg
Material
hot-dip galvanised steel
Intake cross-section
1044.0 cm²/m
Nominal size
100
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433
Sales text
Mesh grating MS 30/10 mm, galvanised, cl. D 400, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Mesh grating MS 30/10 mm, galvanised, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no. 10540
Packaging unit
100
Declaration of Performance
