Article No. 28062

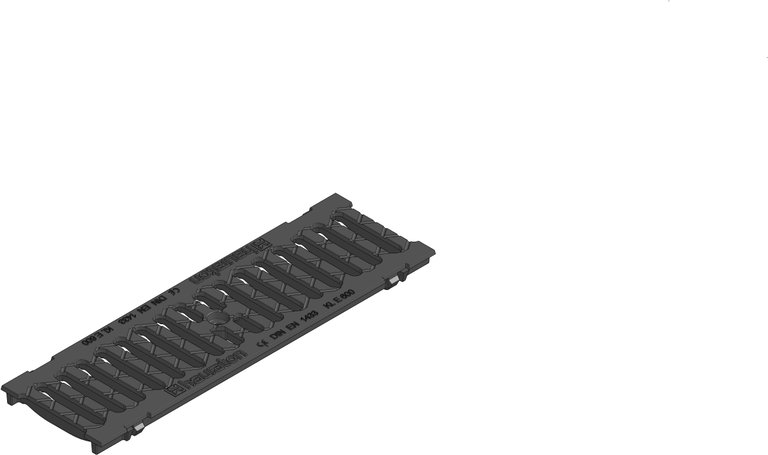

FASERFIX KS 100, class E 600
Ductile iron grating SW 14 mm, black, 0,5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
28062
Length
500 mm
Width
149 mm
Height
26 mm
Einlegetiefe
20 mm
Weight
4.14 kg
Material
Ductile iron GJS 500-7
Intake cross-section
462.0 cm²/m
Nominal size
100
Inlet opening
100 x 14 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 14 mm, KS 100, cl. E 600, 0,5 m
Product description
KS 100 - Ductile iron grating, loading capacity A 15 - E 600 acc. DIN 19580/EN 1433, CE-conform, slot width 100 x 14mm, length 500 mm, Art.-no. 28062
Packaging unit
264
