Article No. 8879
FASERFIX KS 100, class E 600
GUGI-Ductile iron mesh grating, MW 15/25 mm, black, KTL-coated, 0,5 m
Questions?

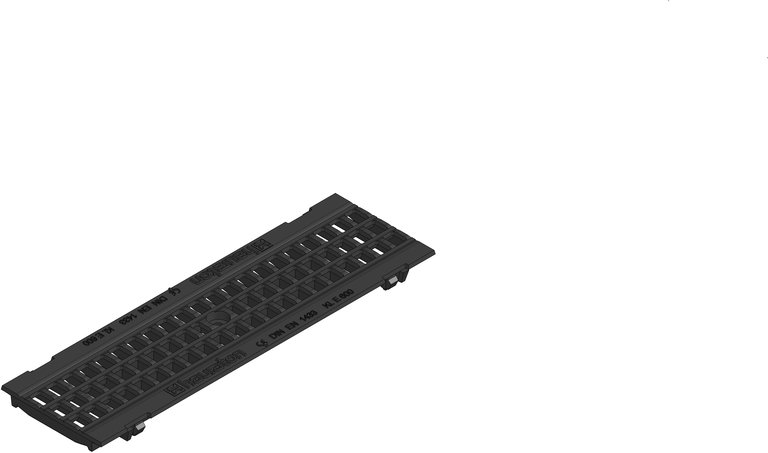

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
8879
Length
500 mm
Width
149 mm
Height
27 mm
Einlegetiefe
20 mm
Weight
4.50 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
401.0 cm²/m
Nominal size
100
Inlet opening
15 x 25 mm
Regulations
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Regulations
GUGI-Ductile iron mesh grating, KTL-coated, class E 600, KS 100, 0,5 m
Regulations
KS 100 - GUGI-Ductile iron mesh grating MW 15/25, KTL-coated, loading capacity A 15 - E 600 acc. DIN 19580/EN 1433, CE-conform, L. 500 mm, 4-times locking, Item-no. 8879
Regulations
264
