Article No. 28080
FASERFIX KS 100, class E 600
GUGI Ductile iron mesh grating, MW 15/25 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

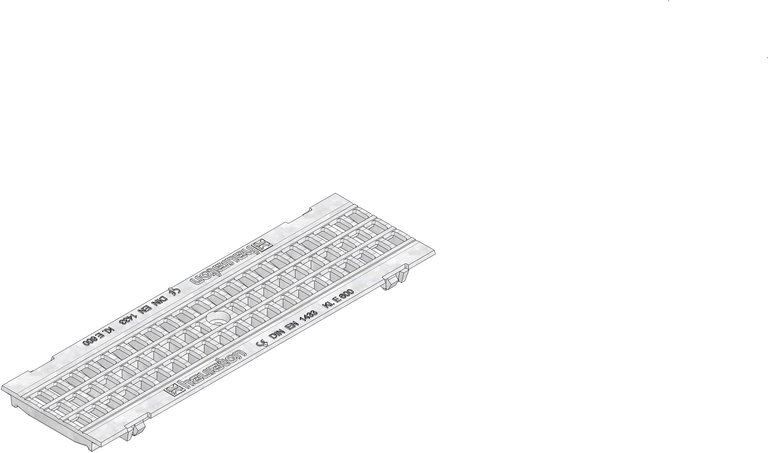

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
28080
Length
500 mm
Width
149 mm
Height
27 mm
Einlegetiefe
20 mm
Weight
4.60 kg
Material
Ductile iron GJS 500-7 galvanised
Intake cross-section
401.0 cm²/m
Nominal size
100
Inlet opening
15 x 25 mm
Regulations
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 galvanised
Regulations
EN 1433, DIN 19580
Regulations
GUGI-ductile iron mesh grating MS 15/25 mm, galvanised, cl. E 600, FASERFIX KS 100, 0.5 m
Regulations
KS 100 - GUGI-Ductile iron mesh grating, MW 15/25, galvanised, loading capacity A 15 - E 600 acc. DIN 19580/EN 1433, CE-conform, length 500 mm, Art.-no. 28080
Regulations
264
Declaration of Performance
