Article No. 8000
FASERFIX KS 100
Type 01, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

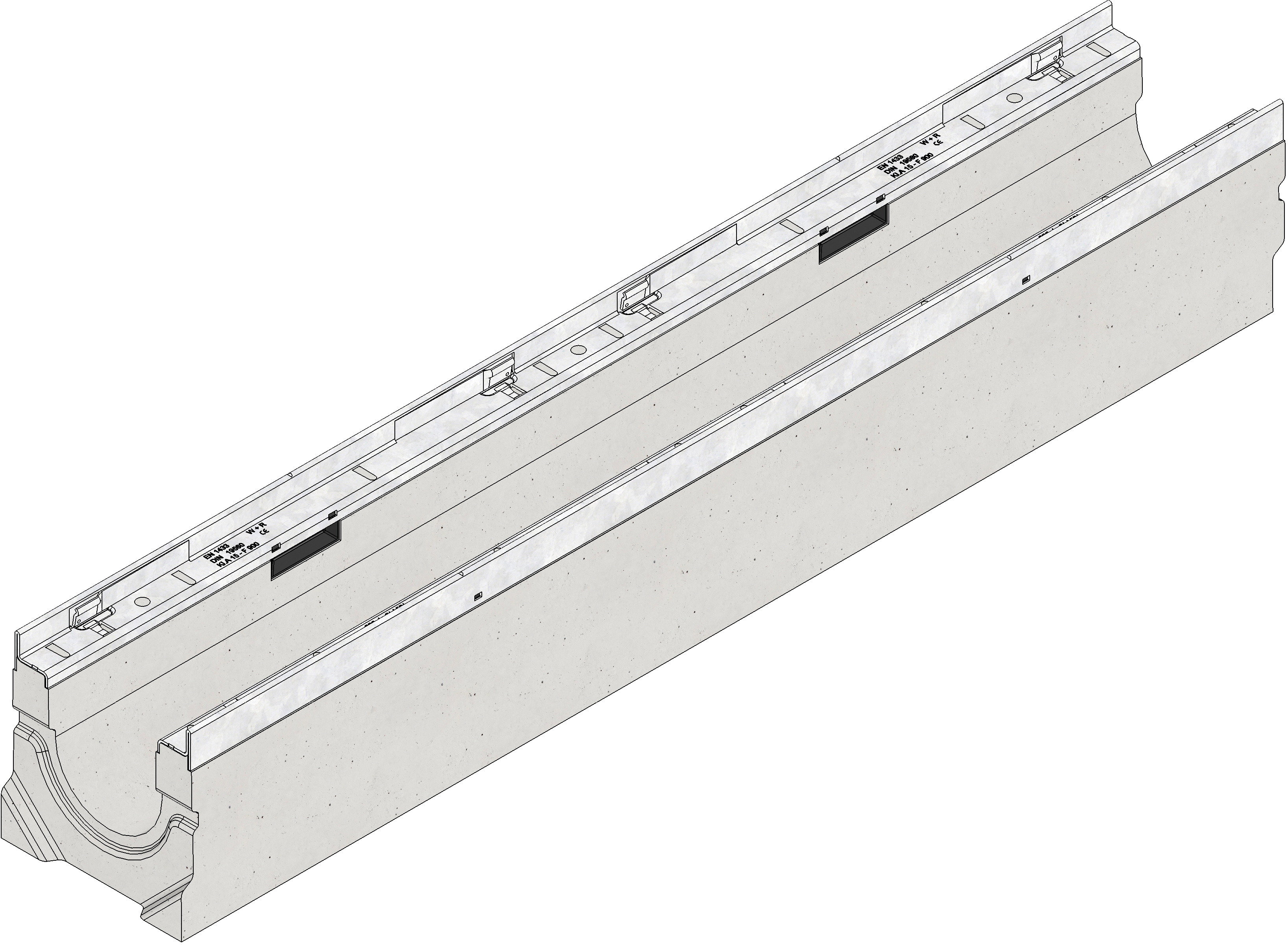

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8000
Length
1000 mm
Width
160 mm
Height
160 mm
Weight
34.80 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
88 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 Channel Type 01 with galvanised steel angle housing, 1 m
Product description
FASERFIX KS 100 type 01 - Channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to DIN19580 / EN 1433, CE-conform, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, fourfold locking, without crossing bars in the channel line, with safety joint, L/W/H 1000x160x160 mm, item no. 8000
Packaging unit
28
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
