Article No. 8041

FASERFIX KS 100

Type 05, galvanised, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

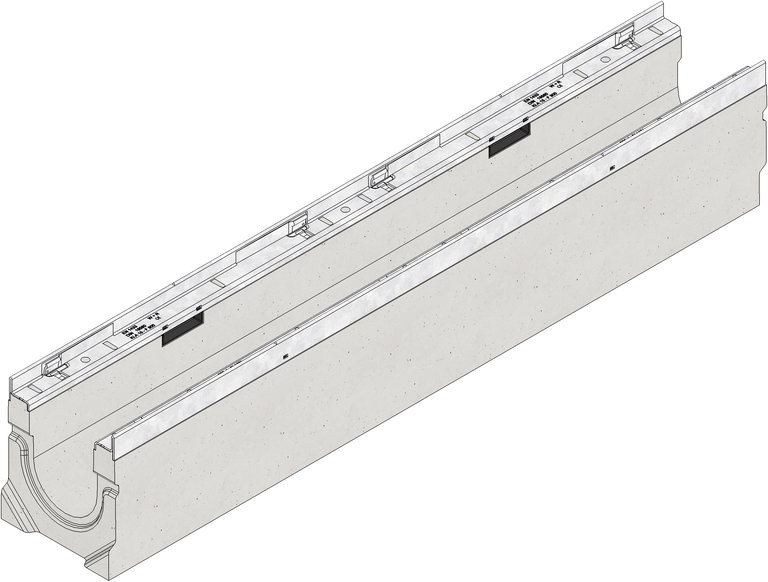

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
8041
Length
1000 mm
Width
160 mm
Height
184 mm
Weight
38.30 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
113 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 Channel body type 05 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX KS 100 type 05 - channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE-conform, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, L/W/H 1000x160x184 mm, item no. 8041
Packaging unit
28

Tender Texts

Installation example

Pavement class A 15,

Pavement class B 125,

Pavement class C 250,

Asphalt class D 400,

Asphalt class D 400,

Pavement class D 400,

Asphalt class D 400,

Concrete class E 600,

Pavement class D 400,

Installation instructions
