Article No. 1708

FASERFIX KS 100 up to load class F 900

Type 100, stainless steel, 1,0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

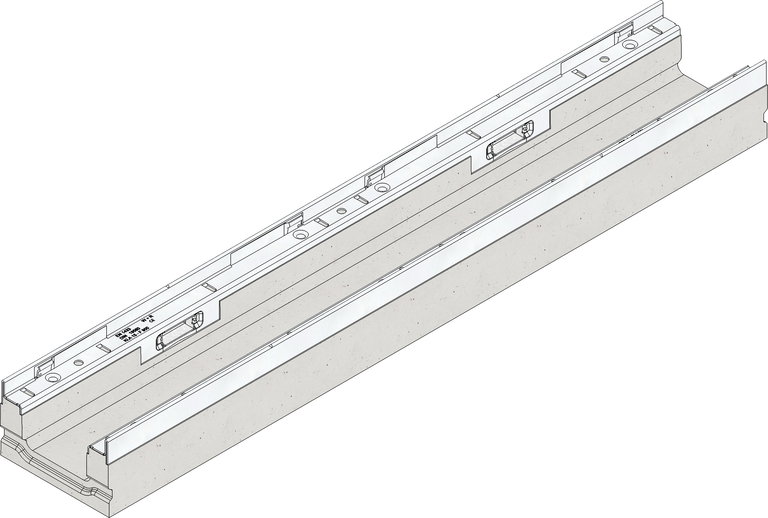

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
1708
Length
1000 mm
Width
160 mm
Height
100 mm
Weight
19.25 kg
Material
fibre-reinforced concrete, Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
54 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 Flat channel body type 100 with edge frames made of stainless steel, 1 m
Product description
FASERFIX KS 100 type 100 - Flat channel body made of fibre-reinforced concrete, suitable for use in parking areas, according to EN 1433, CE compliant, with edge frames made of stainless steel CNS 1.4301 and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, additional locking mechanism applicable, 8-fold locking, with sealing groove, LxWxH 1000x160x100mm, item no. 1708
Packaging unit
56

Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example

Pavement class A 15 - C 250, Flat channel

Installation example

water-bound road surfaces class A 15 - C 250,

Installation example

Asphalt class E 600 - F 900,

Installation example

Concrete class A 15 - F 900,

Installation example

Cemented floor class A 15 - C 250, Flat channel

Installation example

Asphalt class A 15 - D 400, with curb

Installation example

Concrete class A 15 - D 400, with curb

Installation example

Pavement class A 15 - C 250,

Installation example

Asphalt class A 15 - D 400,

Installation example

Pavement / large-size slab class D 400,

Installation example

Pavement class D 400,

Installation example

Concrete class E 600,

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class A 15 - D 400, as double strand

Installation example

Pavement class D 400, as double strand

Installation example

Asphalt class E 600, as double strand

Installation example

Concrete class C 250 - D 400, as double strand

Installation example

Installation instructions
Installation instructions
