Article No. 1138
FASERFIX KS 100 up to load class F 900
Type 100, with opening DN/OD 110, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

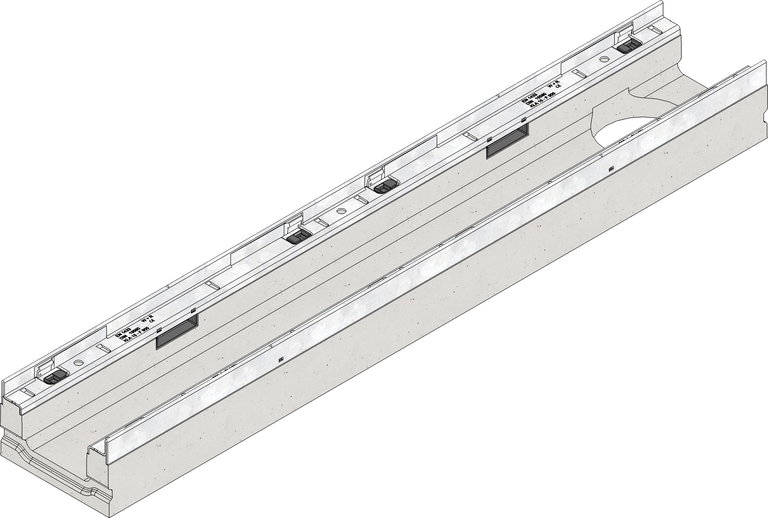

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
1138
Length
1000 mm
Width
160 mm
Height
100 mm
Weight
18.58 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
54 cm²
Fall
-
Regulations
Locking handle, SIDE-LOCK
Regulations
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Regulations
FASERFIX KS 100 Channel Type 100 with hole DN/OD 110
Regulations
FASERFIX KS 100 type 100 with hole - Channel made of fibre reinforced concrete, suitable for use in parking areas, according to EN 1433, with hole DN/OD 110, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, without crossing bars in the channel line, with safety joint, L/W/H 1000x160x100 mm, Item No. 1138
Regulations
56
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Concrete class A 15 - C 250
Concrete class A 15 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Asphalt class E 600 - F 900
Concrete class A 15 - F 900
Cemented floor class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement / large-size slab class D 400
Pavement class D 400
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Installation instructions
