Article No. 1706
FASERFIX KS 100 up to load class F 900
Type 80, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

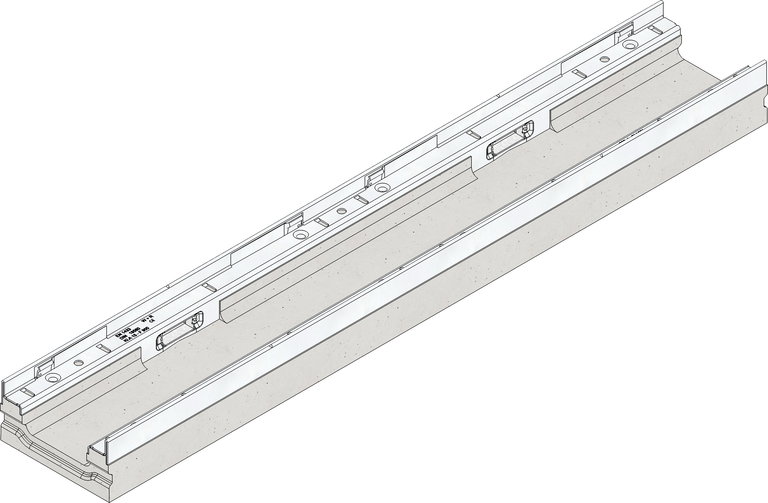

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
1706
Length
1000 mm
Width
160 mm
Height
80 mm
Weight
16.01 kg
Material
fibre-reinforced concrete, Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
34 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 flat channel with stainless steel angle housing, height 80 mm
Product description
FASERFIX KS 100 flat Type 80 - Channel made of fibre reinforced concrete, suitable for use in parking areas according to EN 1433, CE-conform, with stainless steel angle housing and boltless quick-locking system SIDE-LOCK, eigthfold locking, without crossing bars in the channel line, with safety joint, L/W/H 1000x160x80 mm, Item No. 1706
Packaging unit
56
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Concrete class A 15 - C 250
Concrete class A 15 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Asphalt class E 600 - F 900
Concrete class A 15 - F 900
Cemented floor class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement / large-size slab class D 400
Pavement class D 400
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Installation instructions
