Article No. 8008
FASERFIX KS 100 with built-in fall 0.6 %
Type 8, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

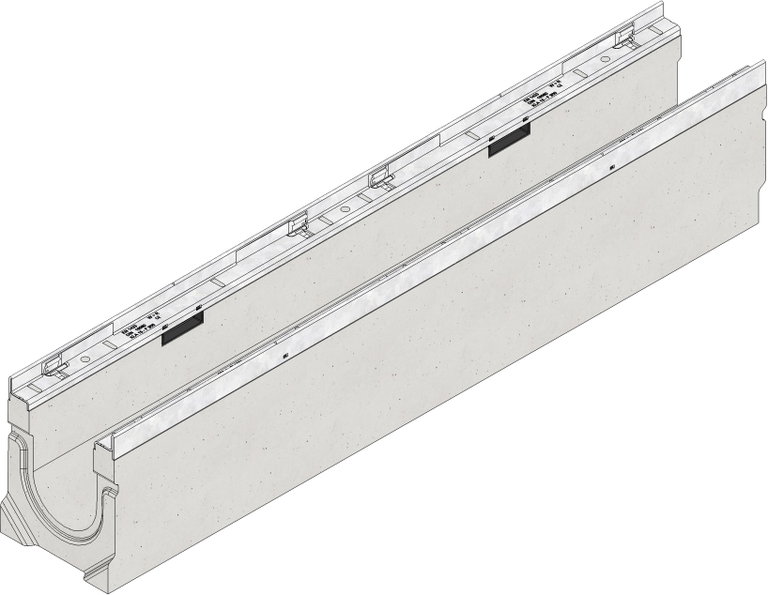

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8008
Length
1000 mm
Width
160 mm
Height
202 - 208 mm
Weight
38.91 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
131 cm²
Fall
0.6 %
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 channel type 8
Product description
FASERFIX KS 100 Type 1-19 - Channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900, according to DIN19580 / EN 1433, CE-conform, with built-in fall, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, L/W/H 1000x160x160-220 mm, Item No. 8001-8010
Packaging unit
21
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
