Article No. 8009
FASERFIX KS 100 with gradient 0.6 %
Type 9, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

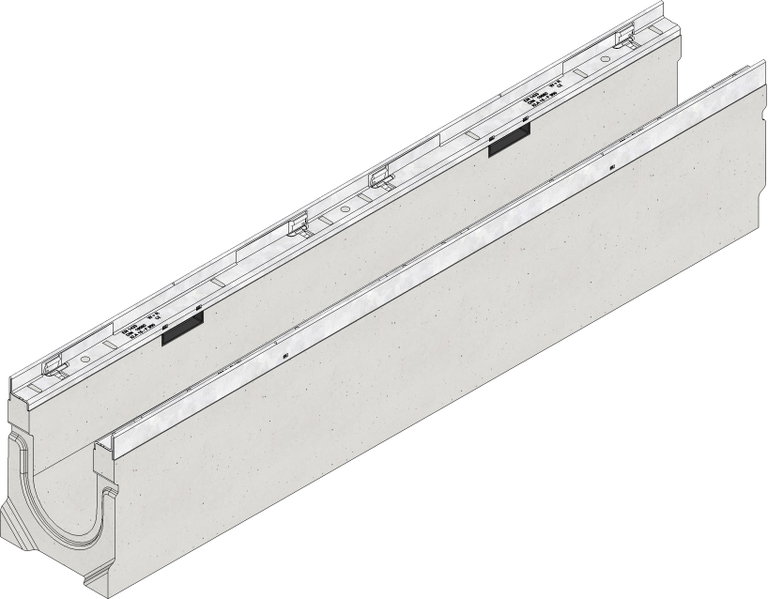

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8009
Length
1000 mm
Width
160 mm
Height
208 - 214 mm
Weight
39.46 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
137 cm²
Fall
0.6 %
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 Channel body type 9 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX KS 100 type 1 - 19 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, sloping depth channel 0,6 %, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, additional locking mechanism applicable, 8-fold locking, with sealing groove, LxWxH 1000x160x160-274 mm, item no. 8001 - 8019
Packaging unit
21
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Asphalt class D 400,
Concrete class E 600,
Pavement class D 400,
Installation instructions
