Article No. 8201
FASERFIX KS 100 with built-in fall 0.6 %, up to load class F 900
Type 1, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

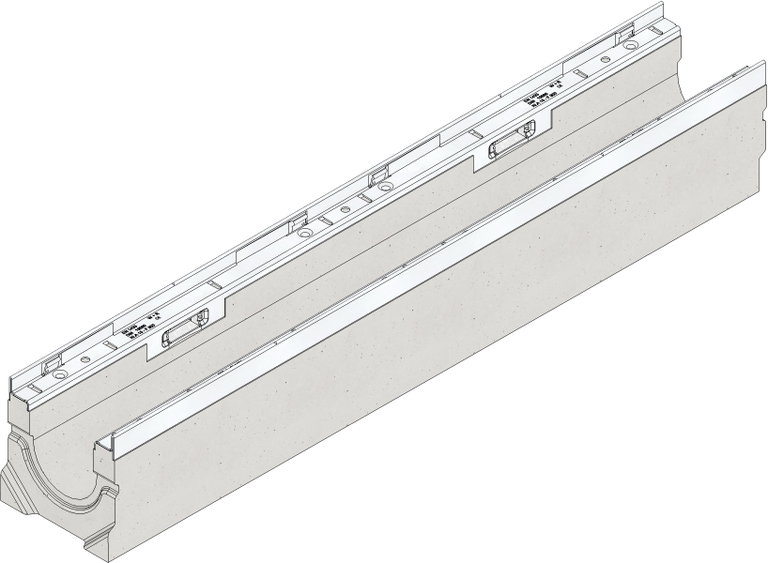

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8201
Length
1000 mm
Width
160 mm
Height
160 - 166 mm
Weight
35.00 kg
Material
fibre-reinforced concrete, Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
89 cm²
Fall
0.6 %
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 channel type 1 with stainless steel angle housing
Product description
FASERFIX KS 100 Type 1-19 - Channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900, according to DIN19580 / EN 1433, CE-conform, with built-in fall, with stainless steel angle housing and boltless quick-locking system SIDE-LOCK, L/W/H 1000x160x160-220 mm, Item No. 8201-8210
Packaging unit
28
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Concrete class A 15 - C 250
Concrete class A 15 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Asphalt class E 600 - F 900
Concrete class A 15 - F 900
Cemented floor class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement / large-size slab class D 400
Pavement class D 400
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Installation instructions
