Article No. 8010

FASERFIX KS 100 with built-in fall 0.6 %, up to load class F 900

Type 10, galvanised, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

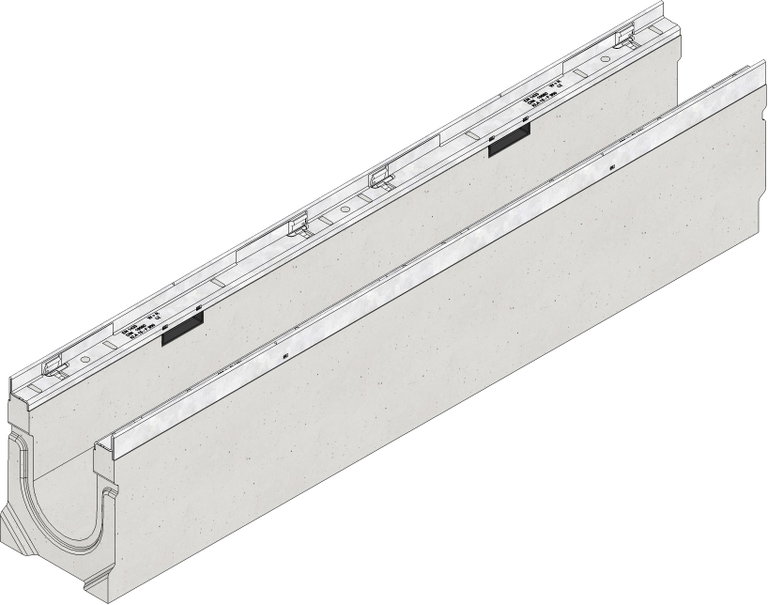

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
8010
Length
1000 mm
Width
160 mm
Height
214 - 220 mm
Weight
39.99 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
143 cm²
Fall
0.6 %
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 Channel body type 10 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX KS 100 Type 1-19 - Channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900, according to DIN19580 / EN 1433, CE-conform, with built-in fall, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, L/W/H 1000x160x160-220 mm, Item No. 8001-8010
Packaging unit
21

Declaration of Performance

Tender Texts

Installation example

water-bound road surfaces class A 15 - B 125,

Concrete class A 15 - C 250, Flat channel

Concrete class A 15 - C 250, Flat channel

Pavement class A 15 - C 250, Flat channel

water-bound road surfaces class A 15 - C 250,

Asphalt class E 600 - F 900,

Concrete class A 15 - F 900,

Cemented floor class A 15 - C 250, Flat channel

Asphalt class A 15 - D 400, with curb

Concrete class A 15 - D 400, with curb

Pavement class A 15 - C 250,

Asphalt class A 15 - D 400,

Pavement / large-size slab class D 400,

Pavement class D 400,

Concrete class E 600,

Pavement class A 15 - C 250, as double strand

Asphalt class A 15 - D 400, as double strand

Pavement class D 400, as double strand

Asphalt class E 600, as double strand

Concrete class C 250 - D 400, as double strand

Installation instructions
