Article No. 11098
FASERFIX KS 150, class B 125
FIBRETEC design slotted grating SW 150/9 mm, in the colour black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

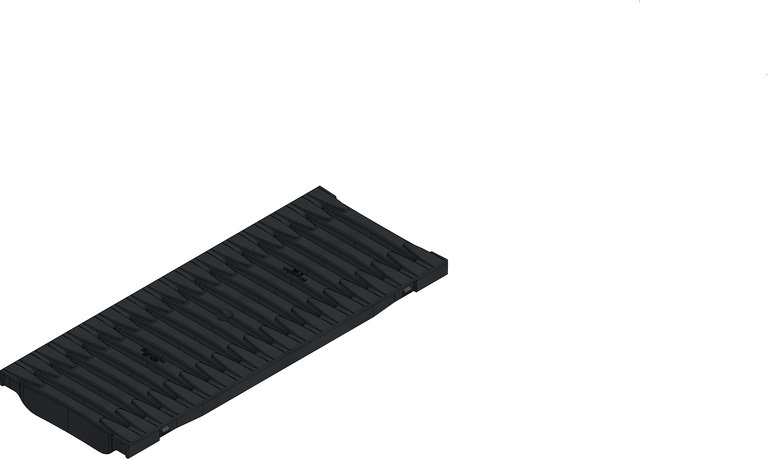

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
11098
Length
500 mm
Width
199 mm
Height
40 mm
Einlegetiefe
20 mm
Weight
2.00 kg
Material
reinforced Polyamide
Intake cross-section
500.0 cm²/m
Nominal size
150
Inlet opening
150 x 9 mm
Regulations
Locking handle, SIDE-LOCK
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, EN 16165
Regulations
FIBRETEC Design slotted grating SW 150/9 mm, black, cl. B 125, FASERFIX KS 150, 0.5 m
Regulations
FASERFIX KS 150 - FIBRETEC design slotted grating slot width 150/9 mm, black, made of fibre-reinforced polyamide, with horizontal thrust resistance and locking handle, load class A 15 - B 125, installation length 500 mm, item no. 11098
Regulations
-
Declaration of Performance
