Article No. 11076
FASERFIX KS 150, class C 250
Mesh grating MW 30/10 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

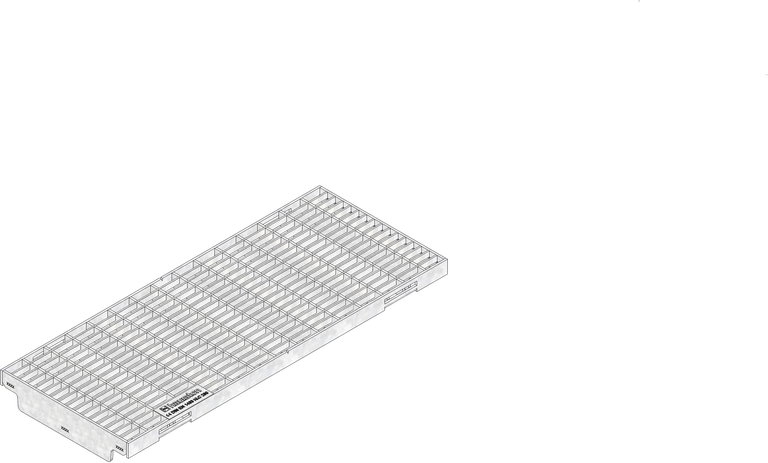

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11076
Length
500 mm
Width
199 mm
Height
41 mm
Einlegetiefe
20 mm
Weight
4.13 kg
Material
hot-dip galvanised steel
Intake cross-section
1444.0 cm²/m
Nominal size
150
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MW 30/10 galvanised, cl. C 250, KS 150, 0,5 m
Product description
KS 150 - Mesh grating, galvanised, loading capacity from A 15 up to C 250, according DIN 19580 / EN 1433, CE-conform, mesh width 30/10, colour: galvanised, length: 500 mm, Item No. 11076
Packaging unit
204
Declaration of Performance
