Article No. 11575

FASERFIX KS 150, class C 250

Mesh grating MW 30/10 mm, stainless steel, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

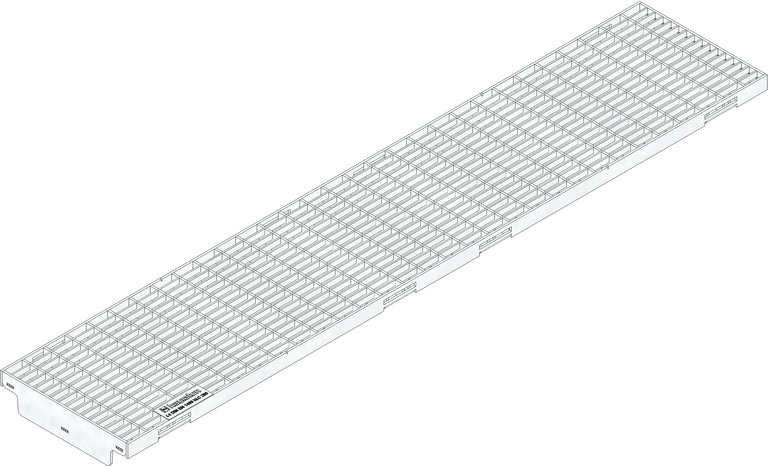

Product image

Technical drawing

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics

Article No.
11575
Length
1000 mm
Width
199 mm
Height
46 mm
Einlegetiefe
20 mm
Weight
7.96 kg
Material
Stainless steel 1.4301
Intake cross-section
1466.0 cm²/m
Nominal size
150
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/10 mm, stainless steel, cl. C 250, FASERFIX KS 150, 1 m
Product description
KS 150 - Mesh grating MW 30/10, stainless steel CNS 1.4301 (AISI 304), loading capacity from A 15 up to C 250, according EN 1433, CE-compliant, mesh width 30/10, length 1000 mm, Item No. 11575
Packaging unit
102
