Article No. 11269
FASERFIX KS 150, class D 400
Longitudinal ductile iron grating SW 9 mm, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

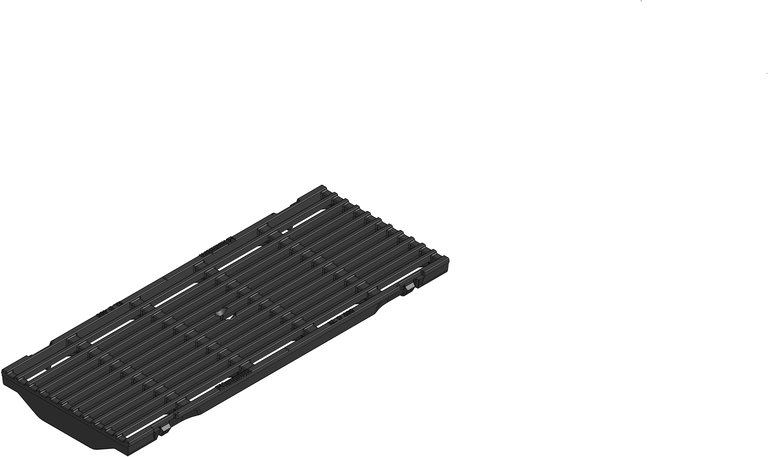

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
11269
Length
500 mm
Width
199 mm
Height
37 mm
Einlegetiefe
20 mm
Weight
5.92 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
740.0 cm²/m
Nominal size
150
Inlet opening
9 x 0 mm
Regulations
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Regulations
Longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, cl. D 400, FASERFIX KS 150, 0.5 m
Regulations
FASERFIX KS 150 - longitudinal ductile iron grating, made of spheroidal ductile iron GJS 500-7, bar distance 9 mm, KTL-coated, with horizontal thrust resistance, loading capacity from A 15 to D 400 according to EN 1433, CE compliant, fourfold locking, installation length 500 mm, item no. 11269
Regulations
144
Declaration of Performance
