Article No. 10543
FASERFIX KS 150, class D 400
Mesh grating MW 30/10 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

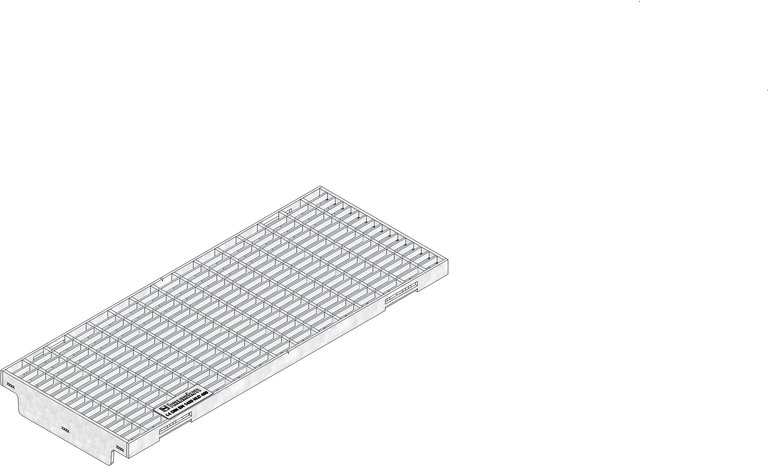

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10543
Length
500 mm
Width
199 mm
Height
46 mm
Einlegetiefe
20 mm
Weight
5.27 kg
Material
hot-dip galvanised steel
Intake cross-section
1390.0 cm²/m
Nominal size
150
Inlet opening
30 x 10 mm
Regulations
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433
Regulations
Mesh grating MS 30/10 mm, galvanised, cl. D 400, FASERFIX KS 150, 0.5 m
Regulations
FASERFIX KS 150 - mesh grating, galvanised, MW 30/10 mm, with horizontal thrust resistance, loading capacity from A 15 up to D 400 according to EN 1433, CE compliant, fourfold locking, installation length 500 mm, item no. 10543
Regulations
-
Declaration of Performance
