Article No. 11268
FASERFIX KS 150, class E 600
GUGI-ductile iron mesh grating MS 15/25 mm, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

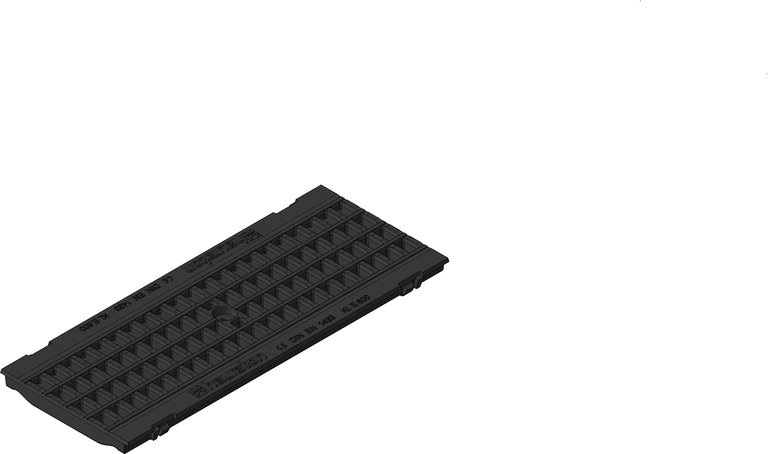

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11268
Length
500 mm
Width
199 mm
Height
33 mm
Einlegetiefe
20 mm
Weight
6.84 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
622.0 cm²/m
Nominal size
150
Inlet opening
15 x 25 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh grating MS 15/25 mm, KTL-coated, cl. E 600, FASERFIX KS 150, 0.5 m
Product description
FASERFIX KS 150 - GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron GJS 500-7, KTL-coated, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 11268
Packaging unit
154
Declaration of Performance
