Article No. 11071
FASERFIX KS 150, class E 600
Mesh grating MW 11/30 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

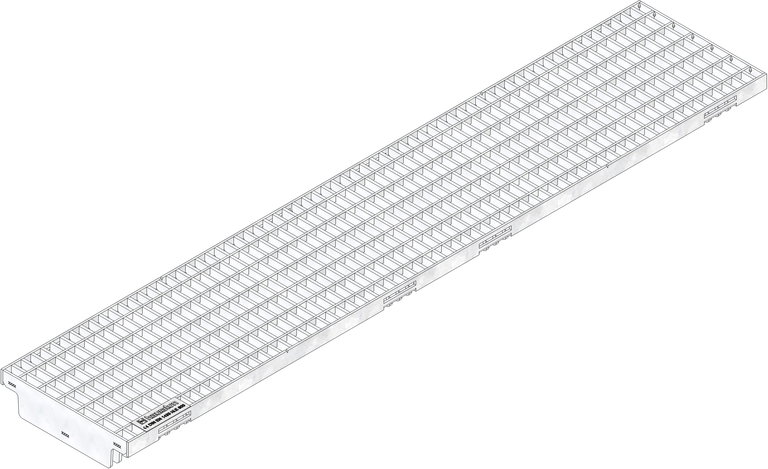

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11071
Length
1000 mm
Width
199 mm
Height
51 mm
Einlegetiefe
20 mm
Weight
18.80 kg
Material
hot-dip galvanised steel
Intake cross-section
1270.0 cm²/m
Nominal size
150
Inlet opening
11 x 30 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MW 11/30 galvanised, cl. E 600, KS 150, 1 m
Product description
KS 150 - Mesh grating, galvanised, loading capacity from A 15 up to E 600, according DIN 19580 / EN 1433, CE-conform, mesh width 11/30, length: 1000 mm, Item No. 11071
Packaging unit
54
Declaration of Performance
