Article No. 11571
FASERFIX KS 150, class E 600
Mesh grating MS 11/30 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11571
Length
1000 mm
Width
199 mm
Height
51 mm
Einlegetiefe
20 mm
Weight
21.00 kg
Material
Stainless steel 1.4301
Intake cross-section
1270.0 cm²/m
Nominal size
150
Inlet opening
11 x 30 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text

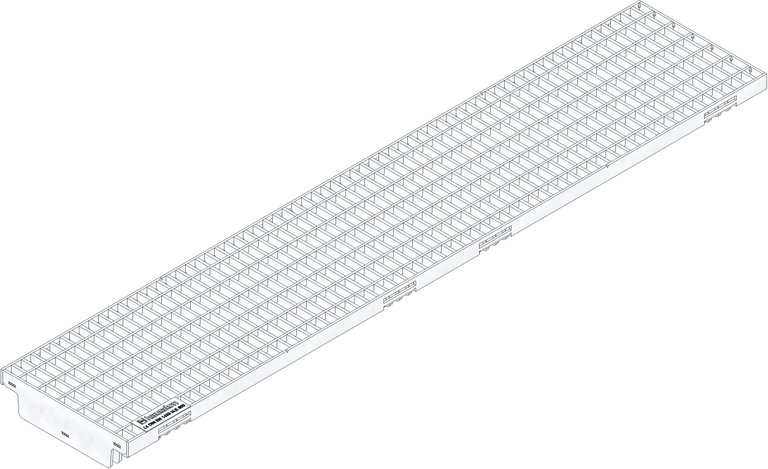

Mesh grating MS 11/30 mm, stainless steel, cl. E 600, FASERFIX KS 150, 1 m
Product description
FASERFIX KS 150 - Mesh grating MS 11/30 mm, stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no. 11571
Packaging unit
54
Declaration of Performance
