Article No. 11000
FASERFIX KS 150
Type 01, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

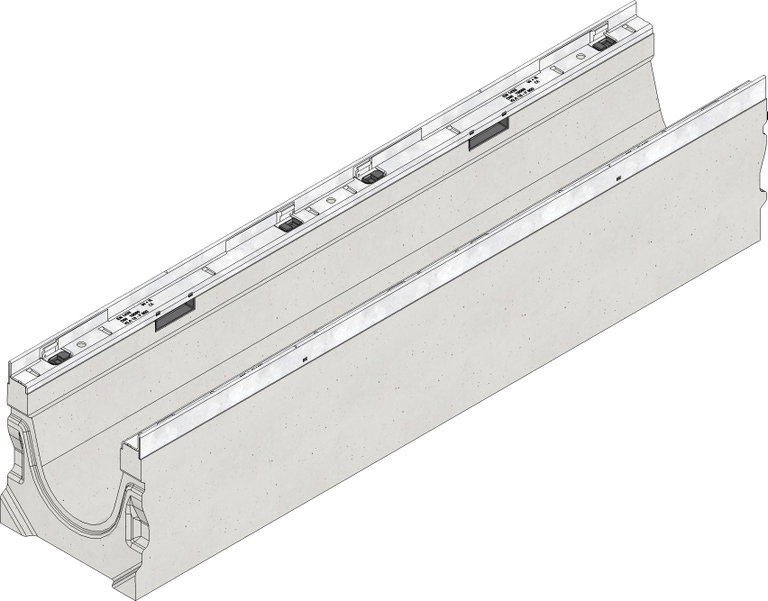

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11000
Length
1000 mm
Width
210 mm
Height
220 mm
Weight
56.90 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
185 cm²
Fall
-
Regulations
Locking handle, SIDE-LOCK
Regulations
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Regulations
FASERFIX KS 150 Channel body type 01 with edge frames made of galvanised steel, 1 m
Regulations
FASERFIX KS 150 type 01 - channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without traverse webs in the channel run, with sealing groove, L/W/H 1000x210x220 mm, item no. 11000
Regulations
15
Tender Texts
Installation example
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Concrete class E 600
Installation instructions
