Article No. 11049

FASERFIX KS 150

Type 01, galvanised, 0,5 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

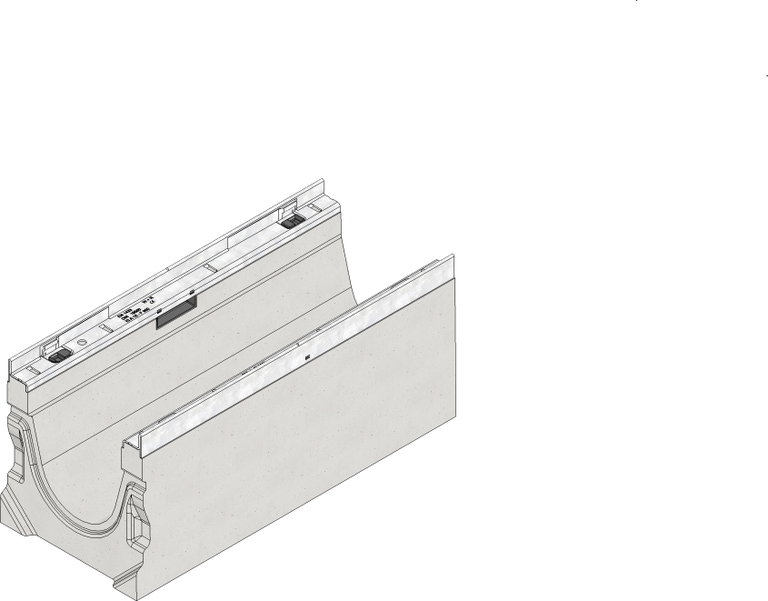

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
11049
Length
500 mm
Width
210 mm
Height
220 mm
Weight
27.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
185 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 150 Channel body type 01 with edge frames made of galvanised steel, 0.5 m
Product description
FASERFIX KS 150 type 01 - channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, fourfold locking, without crossing bars in the channel line, with sealing groove, L/W/H 500x210x220 mm, item no. 11049
Packaging unit
30

Tender Texts

Installation example

Pavement class C 250,

Asphalt class D 400,

Asphalt class D 400,

Pavement class D 400,

Concrete class E 600,

Installation instructions
