Article No. 11044
FASERFIX KS 150
Type 020, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

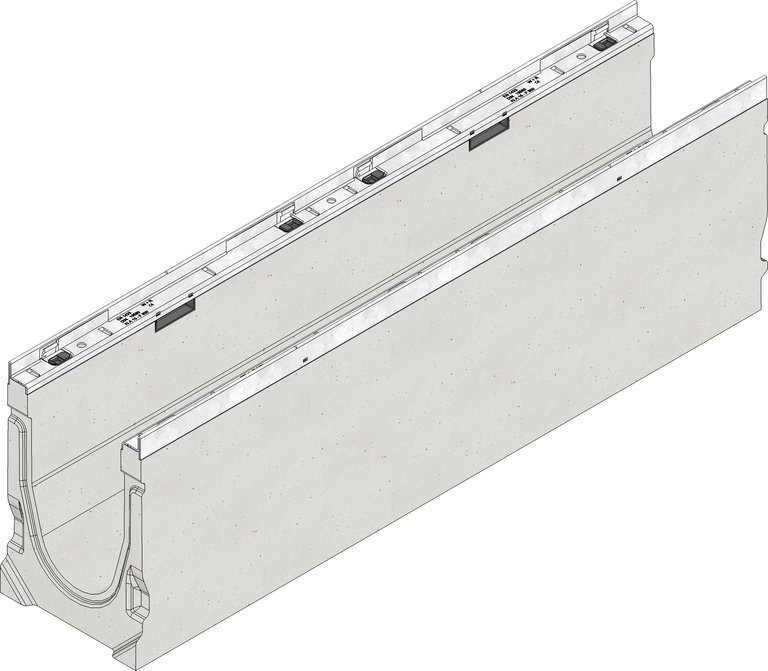

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11044
Length
1000 mm
Width
210 mm
Height
315 mm
Weight
72.70 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
312 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 150 Channel body type 020 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX KS 150 type 020 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, additional locking mechanism applicable, 8-fold locking, with sealing groove, LxWxH 1000x210x315 mm, item no. 11044
Packaging unit
10
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Concrete class E 600,
Installation instructions
