Article No. 11043
FASERFIX KS 150 up to class F 900
Type 015, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

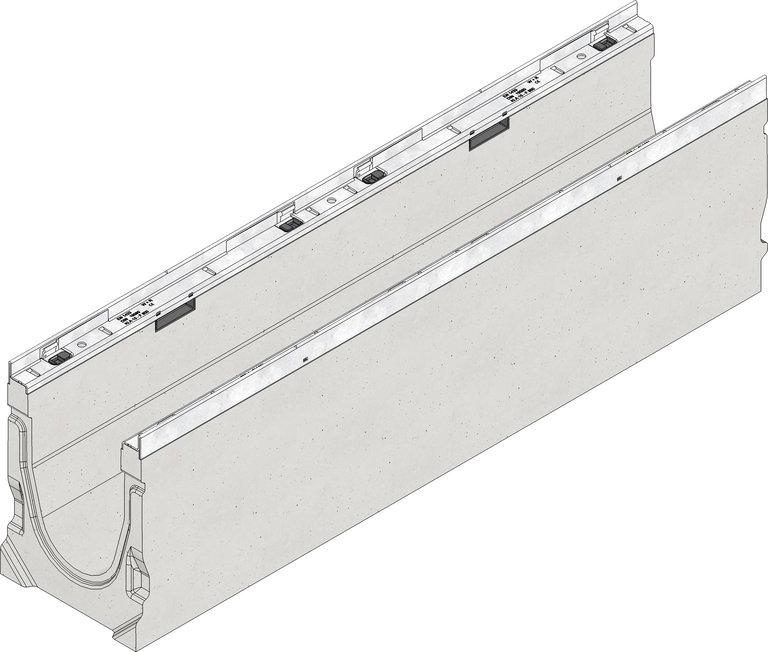

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11043
Length
1000 mm
Width
210 mm
Height
290 mm
Weight
66.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
282 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 150 channel type 015
Product description
FASERFIX KS 150 type 015 - channel made of fibre reinforced concrete, loading capacity from A 15 - E 600 according to EN 1433, CE compliant, with galvanised steel angle housing, with boltless quick-locking system SIDE-LOCK, eightfold locking, without traverse webs in the channel run, with sealing groove, L/W/H 100x210x290 mm, item no. 11043
Packaging unit
10
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Concrete class A 15 - C 250
Concrete class A 15 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Asphalt class E 600 - F 900
Concrete class A 15 - F 900
Cemented floor class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement / large-size slab class D 400
Pavement class D 400
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Installation instructions
