Article No. 11544
FASERFIX KS 150 up to class F 900
Type 020, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

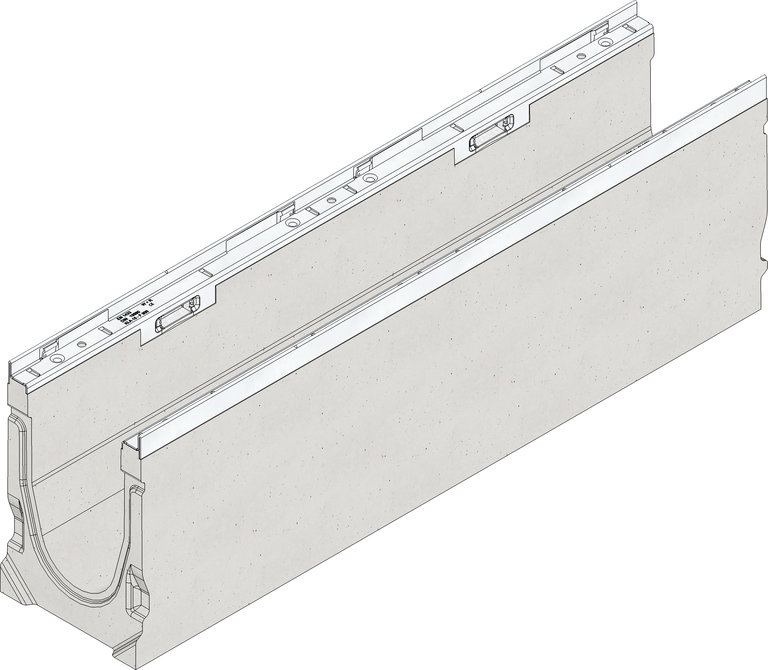

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11544
Length
1000 mm
Width
210 mm
Height
315 mm
Weight
72.00 kg
Material
fibre-reinforced concrete, Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
312 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 150 Channel body type 020 with edge frames made of stainless steel, 1 m
Product description
FASERFIX KS 150 type 020 - channel made of fibre reinforced concrete, loading capacity from A 15 up to E 600 according EN 1433, CE compliant, with stainless steel angle housing CNS 1.4301 (AISI 304) and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, L/W/H 1000x210x315 mm, item no. 11544
Packaging unit
10
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125,
Concrete class A 15 - C 250, Flat channel
Concrete class A 15 - C 250, Flat channel
Pavement class A 15 - C 250, Flat channel
water-bound road surfaces class A 15 - C 250,
Asphalt class E 600 - F 900,
Concrete class A 15 - F 900,
Cemented floor class A 15 - C 250, Flat channel
Asphalt class A 15 - D 400, with curb
Concrete class A 15 - D 400, with curb
Pavement class A 15 - C 250,
Asphalt class A 15 - D 400,
Pavement / large-size slab class D 400,
Pavement class D 400,
Concrete class E 600,
Pavement class A 15 - C 250, as double strand
Asphalt class A 15 - D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Installation instructions
