Article No. 2521
FASERFIX KS 150 up to class F 900
Type 110, with stainless steel angle housing, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

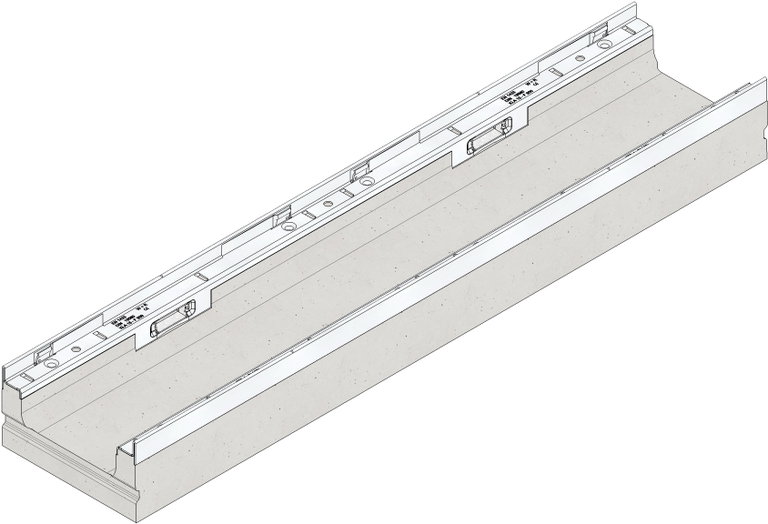

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
2521
Length
1000 mm
Width
210 mm
Height
110 mm
Weight
33.20 kg
Material
fibre-reinforced concrete, Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
74 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 150 shallow, Type 110 with stainless steel angle housing, H: 110 mm
Product description
FASERFIX KS 150 type 110 - channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE-conform, with stainless steel angle housing CNS 1.4301 (AISI 304) and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, L/W/H 1000x210x110 mm, item no. 2521
Packaging unit
35
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Concrete class A 15 - C 250
Concrete class A 15 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Asphalt class E 600 - F 900
Concrete class A 15 - F 900
Cemented floor class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement / large-size slab class D 400
Pavement class D 400
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Installation instructions
