Article No. 11001
FASERFIX KS 150 with built-in fall 0.5 %
Type 1, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

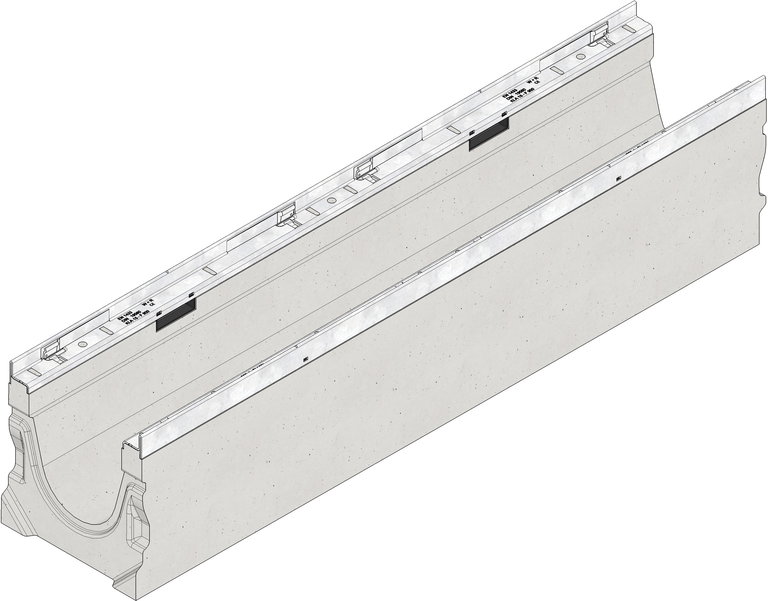

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11001
Length
1000 mm
Width
210 mm
Height
220 - 225 mm
Weight
57.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
186 cm²
Fall
0.5 %
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 150 channel type 1
Product description
FASERFIX KS 150 - channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according EN 1433, CE compliant, with built-in fall type 1 - 9, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without traverse webs in the channel run, with sealing groove, L/W/H 1000x210x220-265 mm, item no. 11001 - 11009
Packaging unit
15
Tender Texts
Installation example
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Concrete class E 600
Installation instructions
