Article No. 12098
FASERFIX KS 200, class B 125
FIBRETEC design slotted grating SW 200/10 mm, in the colour black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

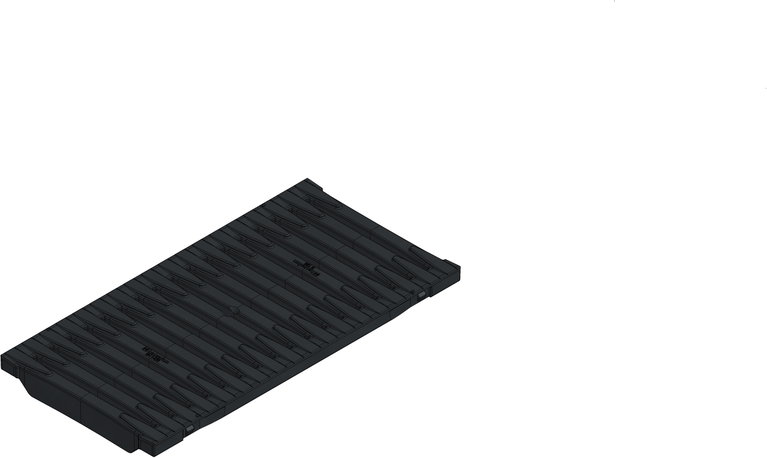

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
12098
Length
500 mm
Width
249 mm
Height
40 mm
Einlegetiefe
20 mm
Weight
2.11 kg
Material
reinforced Polyamide
Intake cross-section
656.0 cm²/m
Nominal size
200
Inlet opening
200 x 10 mm
Regulations
Locking handle, SIDE-LOCK
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Regulations
FIBRETEC Design slotted grating SW 200/10 mm, black, cl. B 125, FASERFIX KS 200, 0.5 m
Regulations
FASERFIX KS 200 - FIBRETEC design slotted grating, slot width 200/10 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class from A 15 - B 125 according to EN 1433, installation length 500 mm, item no. 12098
Regulations
120
Declaration of Performance
