Article No. 12064
FASERFIX KS 200, class C 250
Ductile iron grating SW 2 x 85/20 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

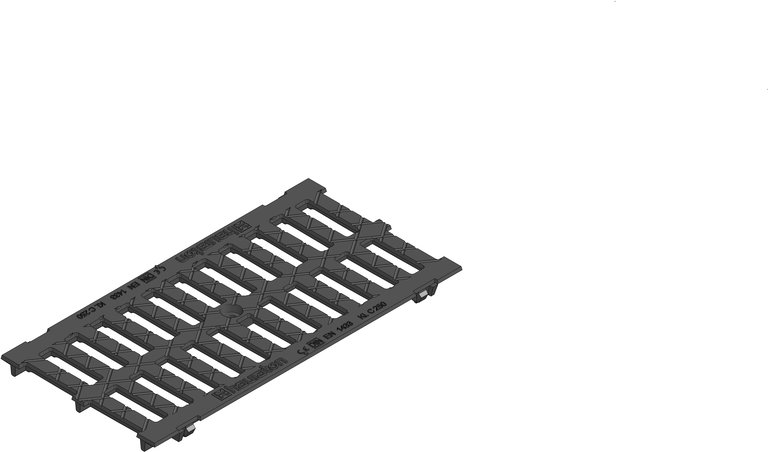

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
12064
Length
500 mm
Width
249 mm
Height
27 mm
Einlegetiefe
20 mm
Weight
5.64 kg
Material
Ductile iron GJS 500-7
Intake cross-section
824.0 cm²/m
Nominal size
200
Inlet opening
85 x 20 mm
Regulations
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Regulations
Ductile iron grating, cl. C 250, KS 200, 0,5 m
Regulations
KS 200 - Ductile iron grating, loading capacity from A 15 up to C 250, not for use across the carriageway of motorways in moving traffic, according to DIN 19580 / EN 1433, CE-conform, length: 500 mm, Item No. 12064
Regulations
108
Declaration of Performance
