Article No. 12264
FASERFIX KS 200, class C 250
Ductile iron grating SW 2 x 85/20 mm, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

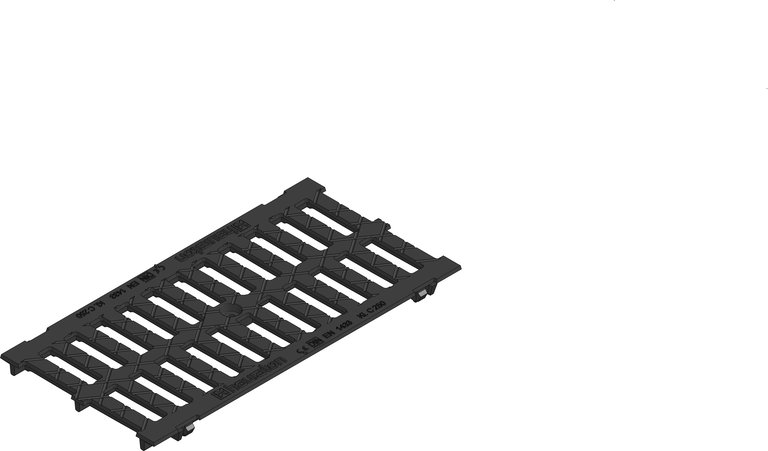

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
12264
Length
500 mm
Width
249 mm
Height
27 mm
Einlegetiefe
20 mm
Weight
5.80 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
824.0 cm²/m
Nominal size
200
Inlet opening
85 x 20 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 80/14, cl. C 250, KTL-coated, KS 200, 0,5 m
Product description
KS 200 - Ductile iron grating, KTL-coated, loading capacity A 15 - D 400 acc. DIN 19580/EN 1433, not for use across the carriageway of highways or motorways in moving traffic, CE-conform, slot size 2-times 85x20 mm, length 500 mm, Art.-no. 12264
Packaging unit
108
Declaration of Performance
