Article No. 12073
FASERFIX KS 200, class C 250
Mesh grating MW 30/30 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

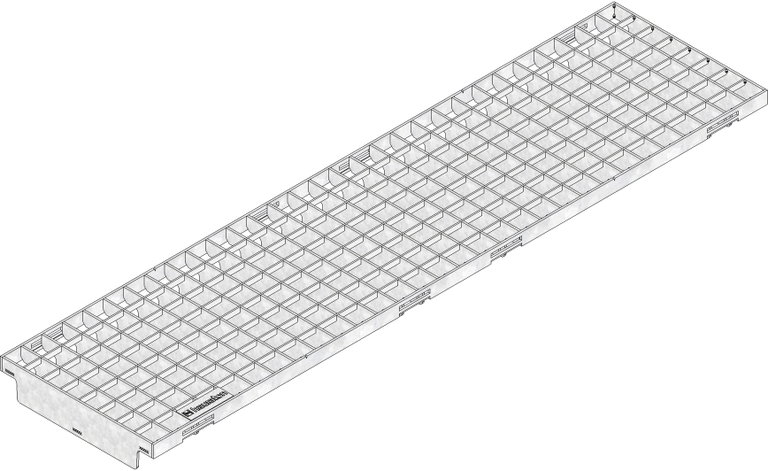

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
12073
Length
1000 mm
Width
249 mm
Height
51 mm
Einlegetiefe
20 mm
Weight
9.20 kg
Material
hot-dip galvanised steel
Intake cross-section
2054.0 cm²/m
Nominal size
200
Inlet opening
30 mm
Fixing type
SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating, mesh width: 30/30, galvanised, cl. C 250, KS 200, 1 m
Product description
KS 200 - Mesh grating, galvanised, loading capacity from A 15 up to C 250 according to DIN 19580 / EN 1433, CE-conform, mesh width 30/30 mm, length: 1000 mm, Item No. 12073
Packaging unit
100
Declaration of Performance
