Article No. 12271

FASERFIX KS 200, class D 400

Ductile iron grating as tactile indicator for the visually impaired, black, lcoked, KTL-coated

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

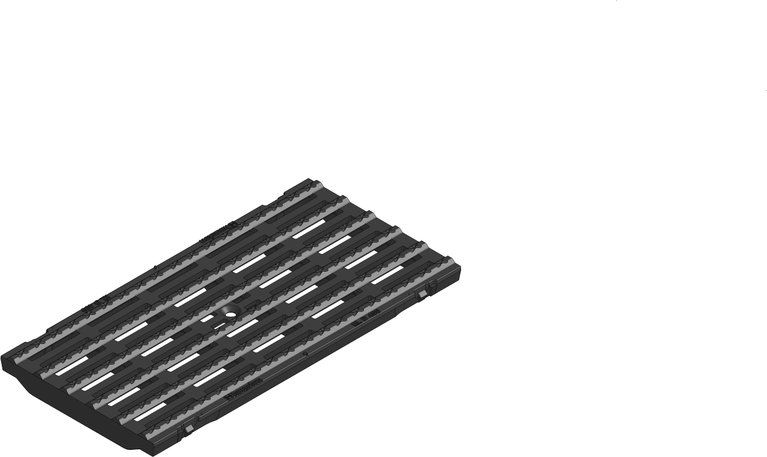

Product image

Top view

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
12271
Length
500 mm
Width
249 mm
Height
38 mm
Einlegetiefe
20 mm
Weight
10.07 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
595.0 cm²/m
Nominal size
200
Inlet opening
8 x 80 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
Iron grating walking indicators made of spheroidal ductile iron EN-GJS-500-7 , KTL-coated, cl. D 400, FASERFIX KS 200, 0.5 m
Product description
Blind Guide Cover for FASERFIX KS 200 -Channel cover made of spheroidal graphite iron EN-GJS for safe covering of a drainage channel and simultaneous use as a soil indicator for tactile orientation and guidance for the visually impaired, colour: black (tactile contrast to light-coloured connecting surfaces), KTL-coated, anti-slip due to additional profiling, with horizontal thrust protection, load class A 15 - D 400 according to DIN 19580/EN 1433, CE-compliant, based on DIN 32984 2011-10 (soil indicators in public space), with 8-fold screwless quick-fastening SIDE-LOCK per metre, optional fixing with bolt, dimensions l/w/h 500x249x20 mm, art.no. 12271
Packaging unit
108
