Article No. 12463
FASERFIX KS 200, class D 400
Ductile iron grating SW 2 x 85/18 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

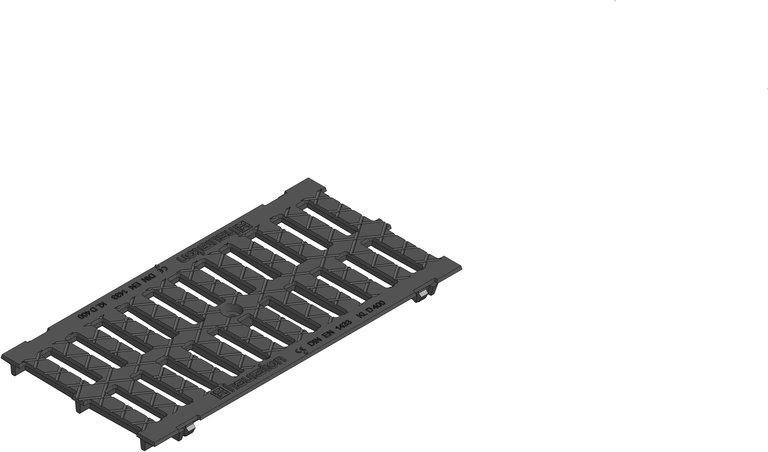

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
12463
Length
500 mm
Width
249 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
6.83 kg
Material
Ductile iron GJS 500-7
Intake cross-section
724.0 cm²/m
Nominal size
200
Inlet opening
85 x 18 mm
Regulations
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Regulations
Ductile iron grating, SW 18 mm, cl. D 400, KS 200, 0,5 m
Regulations
FASERFIX KS 200 - ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 2x 85x18 mm, black, loading capacity from A 15 - D 400 according to EN 1433, CE-conform, length 500 mm, item no. 12463
Regulations
126
Declaration of Performance
