Article No. 12068
FASERFIX KS 200, class E 600
GUGI-uctile mesh grating MS 15/25 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

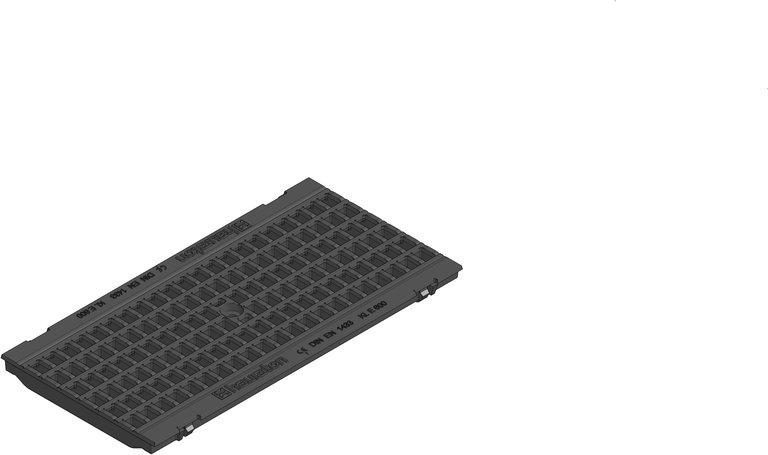

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
12068
Length
500 mm
Width
249 mm
Height
34 mm
Einlegetiefe
20 mm
Weight
10.21 kg
Material
Ductile iron GJS 500-7
Intake cross-section
867.0 cm²/m
Nominal size
200
Inlet opening
15 x 25 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. E 600, FASERFIX KS 200, 0.5 m
Product description
FASERIFX KS 200 - GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron GJS 500-7, black, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 12068
Packaging unit
96
Declaration of Performance
