Article No. 3121
FASERFIX KS 200 up to load class F 900
Type 110, with galvanised steel angle housing, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

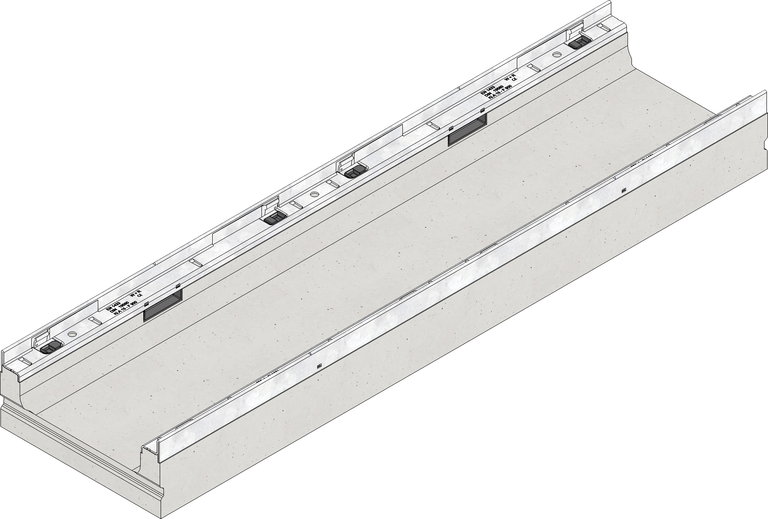

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
3121
Length
1000 mm
Width
260 mm
Height
110 mm
Weight
32.53 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
200
Internal channel cross-section
97 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 200 flat channel type 110
Product description
FASERFIX KS 200 flat Type 110 - Channel made of fibre reinforced concrete, suitable for use in parking areas according to EN 1433, CE-conform, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with safety joint, L/W/H 1000x260x110 mm, Item No. 3121
Packaging unit
24
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Concrete class A 15 - C 250
Concrete class A 15 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Asphalt class E 600 - F 900
Concrete class A 15 - F 900
Cemented floor class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement / large-size slab class D 400
Pavement class D 400
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
